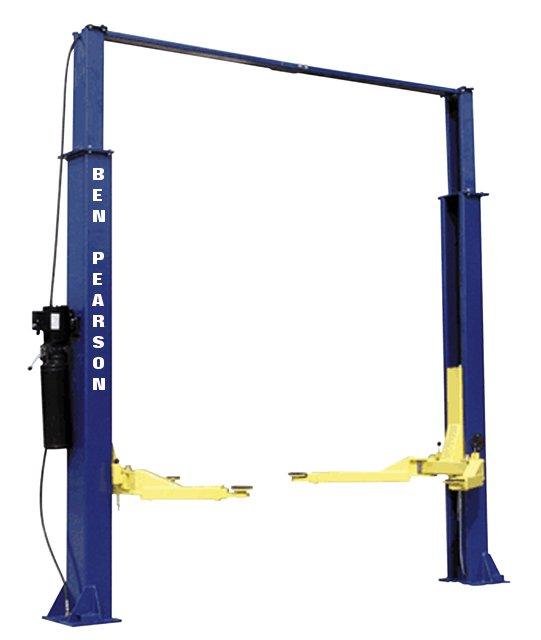

Model Baymaster 9CF
The Baymaster 9CF from Ben Pearson has the Features you need. Its a true asymmetrical design lift, and like all Ben Pearson lifts, it has all the features that provide the rugged durability you've come to expect from Ben Pearson.
Ben Pearson Baymaster Series
Call For Price
(Required)(Numeric value required)
We've Put 9,000 Pounds Of Lifting Power And Ben Pearson Quality Into The Baymaster 9CF.
Quality made. Performance tested. When you invest in Ben Pearson Baymaster 9CF you get both. Plus a whole lot more. Features. Rugged durability. Every Baymaster 9CF delivers all this and operator features that go beyond whats needed.
Lift Features:
- Asymmetric Design
- Dual Cylinders With Low Friction Chain Rollers
- Low Profile Automatic Arm Restraints
- Stackable Drop-In Height Adapters
- Powder-Coated Paint Finish
- Electric Override Automatic Safety Shut-Off
Lift Specifications:
| Capacity |
9000 lbs |
| Lifting Speed |
50 seconds |
| Motor Rating |
2HP - 220V |
| Width Overall |
134" |
| Height Overall |
142" |
| Drive Thru Width |
92" |
| Width Between Column |
109" |
| Raised Height(no ext.) |
70-1/2" |
| Raised Height(with ext.) |
75-1/2" |
| Low Height |
4.5" |
| Lifting Speed |
51 seconds |
