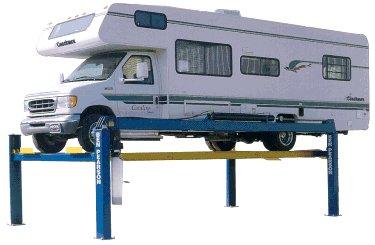

Model HC25000-4
The AMERICAN MADE HEAVY-DUTY HC25000-4 is loaded with features you come to expect from a Ben Pearson lift.
Ben Pearson Heavy Duty
Call For Price
(Required)(Numeric value required)
Quality made lifts, Built to last. They are built tough. It's Built to last. And, most importantly, it's built by Ben Pearson, and that's your assurance that you're getting and American-made product that will get the job done. You work hard, why not get a lift that works just as hard.
We build our lifts with the features you need. Check out the features on this lift and we know you'll be impressed. Rugged features. Safety features. All the extras you need, and expect in a quality lift.
Features:
- Heavy-duty adjustable 24 inch tracks
- Made in the USA
- Air-lock safety release
- Multi-position locks in all four columns
- Electric/hydraulic power unit
- Roller-jack ready
- Adjustable runways
- Diamond-plate non-skid surface
- High tensile strength leaf chain
- 8" I-Beam track for stability and safety
- Optional drive-thru capability
- Optional 3' and 6' bolt-on extensions
Specification:
| Rise |
67" |
| Length Overall |
299 3/8" |
| Length Overall w/3' Extensions |
355 3/8" |
| Length Overall w/6' Extensions |
371 3/8" |
| Width Overall |
147-3/4" |
| Height Overall |
91-1/2" |
| Inside of Columns |
130 3/4" |
| Between Columns |
234" |
| Height of Columns |
74-7/8" |
| Width of Runways |
24" |
| Height of Runways |
9 5/8" |
| Length of Runways |
256 1/2" |
| Width Between Runways (Minimum) |
35" |
| Width Between Runways (Maximum) |
67 3/8" |
| Length of Approach Ramps |
45" |
| Lifting Capacity |
25,000 lbs. |
| Motor |
2 HP |
| Voltage (single phase) |
208-230 VAC |
| Approximate Speed of Rise |
90 Sec. |
| (to full stroke) |
| Approximate Maximum Wheelbase |
237" |
| (28" OD Tire) |
| Approximate Maximum Wheelbase |
273" |
| w/ 3 ft. Extensions |
| Approximate Maximum Wheelbase |
309" |
| w/ 6 ft. Extensions |
| Approximate Maximum Wheelbase |
228 1/2" |
| (52" OD Tire) |
| Approximate Maximum Wheelbase |
264 1/2" |
| w/ 3 ft. Extensions |
| Approximate Maximum Wheelbase |
300 1/2" |
| w/ 6 ft. Extensions |
| Minimum Recommended Bay Size |
16' x 29' |
| Minimum Recommended Bay Size |
16' x 32' |
| w/ 3 ft. Extensions |
| Minimum Recommended Bay Size |
16' x 35' |
| w/ 6 ft. Extensions |
Click here to download Brochure
